Opening your TIFs

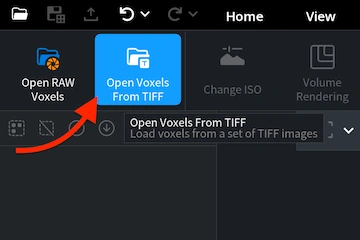

To start working with your TIF files in the MeshInspector program, open the ’CT’ tab. After that, click on ’Open Voxels From TIFF.’ This command will allow you to load a set of TIF images as a single volumetric dataset. This, in turn, will enable you to preview and change the eventual result.
Uploading your TIFs

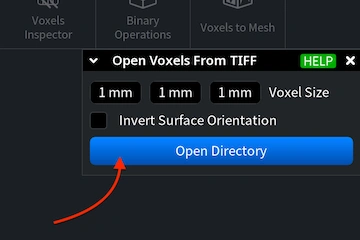

A panel appears. Here, you can define the voxel size for the dataset. You can either type in the desired values or adjust them by dragging horizontally over each field. Below the voxel size fields, you can enable ‘Invert Surface Orientation.’ Once the settings are finalized, click ’Open Directory.’
Browsing your TIFS

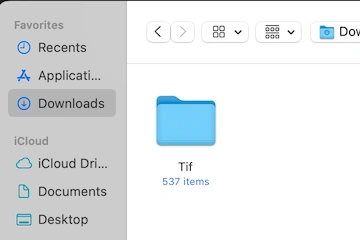

Clicking ‘Open Directory’ launches the file-selection dialog. Our program processes TIFs as volumetric stacks. Thus, you must choose a folder containing multiple TIFs, a single file is not sufficient. Navigate to the directory that stores your slice sequence, select it, and then click 'Upload.'
Inspecting your TIF object

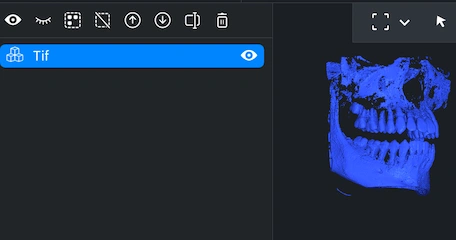

Once uploaded, the TIF appears as a single object in your Viewport and in the Scene Tree on the left. MeshInspector treats the raster as a heightmap-ready dataset that can be inspected just like any other 3D or volumetric object. Here is what you can do next. Rist, rotate the view by dragging with the left mouse button (or using a one-finger touchpad gesture). Pan by holding the right mouse button or sliding two fingers on a touchpad. Zoom with the mouse wheel or a pinch gesture. To tilt the camera, hold Ctrl and drag with the left mouse button.
Changing ISO-values
When your TIF represents volumetric data, you can fine-tune which density levels are turned into visible geometry by adjusting the ISO-value. When you click ‘Change ISO,’ under ‘CT’ MeshInspector displays a histogram of voxel intensities. The vertical marker on the histogram corresponds to the current ISO threshold. Click anywhere on the histogram to set a new ISO-value. The 3D preview on the left refreshes in real time. You can also switch between surface extraction algorithms, ‘Dual Marching Cubes’ and ’Standard Marching Cubes.’ Enable ’Ratio scale’ if you want the histogram to be presented regardless of absolute voxel counts.
Voxels to Mesh

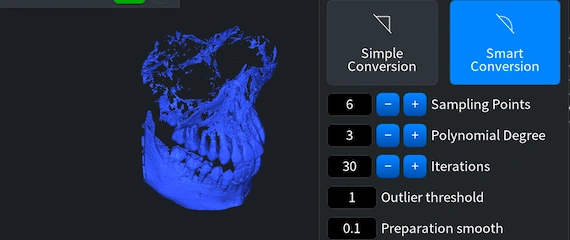

Now, we take another step on the route to a successful conversion from TIF files to ASC. Our initial voxel-based TIF must become a mesh. For that, under ‘CT’, click ‘Voxels to Mesh.’ Two options will be available: 'Simple Conversion' and 'Smart Conversion.' The second applies an additional refinement stage that improves the surface by sampling points around each vertex and fitting them to a local polynomial, including ‘Sampling Points,’ ‘Polynomial Degree,’ ‘Iterations,’ ‘Outlier Threshold,’ etc. Whatever your choice might be, you can always tick the ‘Preserve Voxel Object’ box to keep the voxel dataset in the Viewport. Click ‘Convert’ to initiate the process.
Mesh To Could

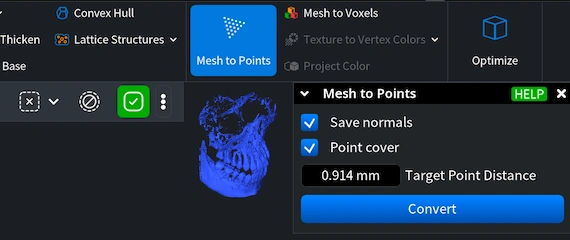

Our next step is to turn the mesh into a point cloud. Select the mesh in the ’Scene Tree,’ open ’Mesh Edit,’ and click ’Mesh to Points.’ A small panel appears with several parameters. Save normals, if enabled, stores per-point normals derived from the mesh surface. Point cover ensures uniform point distribution across the surface; when you enable this option, an additional field, ‘Target Point Distance,’ appears. This value defines the spacing between points and therefore the density of the generated cloud. After choosing your settings, click ’Convert’ to create the point-cloud object.
Exporting as an ASC File

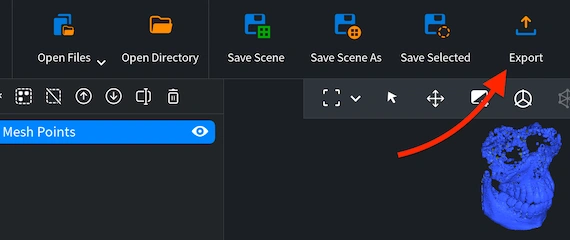

The final step of our TIF-to-ASC conversion workflow is to export our processed dataset in the ASC format. With the point cloud selected in MeshInspector’s ‘Scene Tree,’ go to the top toolbar, under the ‘Home’ tab, and click ‘Export.’ A file-format dropdown will appear. From this list, among all other alternatives, choose ASC format. The MeshInspector program for 3D data will then prompt you to specify a filename and destination. After selecting the location, click ‘Save.’ As a result, our solution will then generate a standard single .asc file you can work with later.
